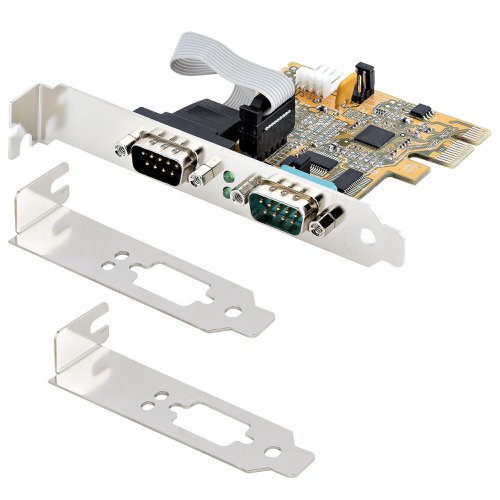

StarTech.com 2 Port PCI Express RS232 Serial Card
- Connect serial RS232 (DB9) devices to a computer with this PC serial card
- Features support for high performance 16C1050 UART on both DB9 male ports
- Monitor activity with the built-in LED status lights on the PCI express DB9 card
- Connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc.
- UART PCIe card supplies 5V or 12V power over pin 9

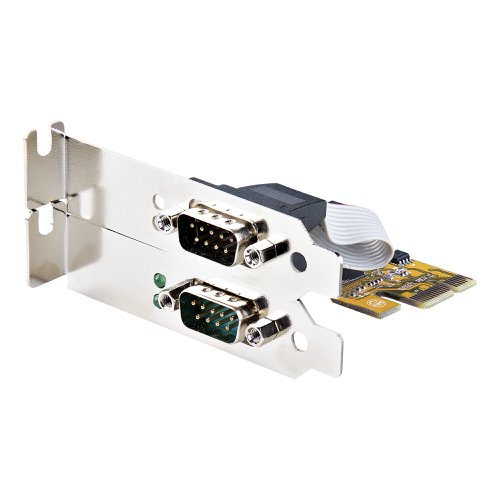

- Low-profile brackets are included
Description
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Lead Time
1
Brand
StarTech.com
Capacity
2 Ports
Categories
Computer Components
Category
PCI Cards
Connector Type
PCI Express
Dimensions
73x120x18mm
External Ports
2x DB-9 (9 pin, D-Sub) Male
Form
Serial Card
Manufacturer
StarTech.com
Type
PCI Cards
Warranty
2 Year Warranty
Weight
51g
